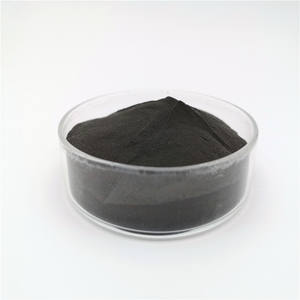

How to Use 600 Grit Silicon Carbide Powder for Flawless Tumbling & Deburring

The Precision Finisher’s Secret Weapon

Have you ever pulled parts from your tumbler, only to find jagged burrs still clinging or a finish that looks blotchy and inconsistent? You’re not alone. That’s the frustration of using the wrong abrasive media for the final stage. Many of us have been there. The solution isn’t more time in the machine; it’s the right media at the right time. That’s where 600 grit silicon carbide powder for tumbling and deburring becomes your essential tool.

Think of it as the final sanding block for your metal components. It’s the grit that transitions parts from “processed” to “finished.” In this guide, we’ll walk through exactly how to harness this specific media. We’ll cover setups, ratios, and the step-by-step process that takes the guesswork out of achieving a reliable, professional-grade surface.

Why 600 Grit Silicon Carbide? The Core Logic

Choosing media isn’t magic; it’s logic. Silicon carbide is one of the hardest man-made abrasives, second only to diamond. This means two critical things for your finish: it cuts fast, and it fractures to stay sharp. A 600 grit particle is fine enough to remove the microscopic peaks left by coarser media without cutting significant new valleys. The result is a consistent, non-reflective satin matte finish that looks uniform across the entire batch.

Perfect Applications for 600 Grit

This media shines on parts where appearance and precision matter. It’s your go-to for:

• Aluminium and brass components for electronics or firearms.
• Stainless steel medical instruments or cutlery.
• Precision-machined steel parts requiring a final, consistent surface.
• Removing the very fine, hazy scratches left by a 220 or 320 grit ceramic pre-finish cycle.

Setting Up Your Process: The Critical Parameters

Success with fine abrasives like 600 grit silicon carbide depends entirely on proper setup. A haphazard approach just creates mud and wasted media. Follow these parameters precisely.

1. Select and Prepare Your Tumbler

Not all machines are created equal for fine powder media.

• Machine Type: Use a vibratory tumbler. Rotary tumblers simply will not fluidize fine powder media effectively; the media will cake and slide.
• Tub Condition: Ensure the tub is clean, dry, and free of old, coarse media contamination. A quick wipe-down with isopropyl alcohol works well.
• Media Gate/Strainer: Verify your media separation gate has a mesh fine enough to retain 600 grit powder (approx. 25 microns or smaller).

2. Calculate and Load Media, Parts, and Compound

This is the most common mistake-getting the ratios wrong.

• Media-to-Parts Ratio: For 600 grit powder, use a 3:1 or 4:1 ratio by volume. For every 1 gallon of parts, use 3-4 gallons of dry media. The powder needs volume to circulate.
• Loading Order: First, add the dry 600 grit silicon carbide powder to the empty tub. Then, add your pre-cleaned, dry parts. Finally, add your liquid compound.
• Compound/Lubricant: You must use a liquid. For a clean satin finish on metals, use 3-5 fluid ounces of a clear, non-foaming burnishing compound or a dedicated liquid lubricant per 10 gallons of tub capacity. Water alone is insufficient and promotes rust on ferrous metals.

The Step-by-Step Operational Guide

Let’s walk through the cycle from load to unload.

Step 1: Initial Loading and Startup

1. Measure and pour the required volume of dry 600 grit silicon carbide powder into the clean vibratory tub.
2. Add your deburred, clean, and dry parts.
3. Drizzle the measured liquid compound evenly over the media and parts.
4. Secure the tub lid.
5. Start the vibratory motor. Let it run for 2 minutes. Stop.
6. Open the lid. The compound should now be evenly distributed. If you see dry patches, add 1 more fluid ounce of compound, close, and run for another minute.

Step 2: The Main Finishing Cycle

1. With the mixture uniform, secure the lid and start the main cycle.
2. Set a timer. For most parts, the sweet spot is between 2 and 6 hours. Aluminum typically reaches its final finish faster (2-4 hrs). Harder steels may need 4-6 hours.
3. Do not open the lid frequently. This disrupts the media flow and lets moisture out.

Step 3: Separating Parts and Media

1. When the cycle finishes, stop the machine.
2. Position your parts collection container under the media separation gate.
3. Carefully open the gate. The fine media will flow out first. Once media flow slows, gently agitate or shake the tub to sift parts to the gate opening.
4. Collect all parts. They will be coated in a thin gray/black sludge. This is normal.

Step 4: Final Cleaning and Drying

1. Rinse the parts thoroughly in a separate container of warm water with a drop of mild detergent. Do not rinse them directly in the tumbler tub.
2. For a spot-free finish, a final rinse in distilled water or a dip in a water-displacing rust inhibitor (for steel) is highly recommended.
3. Dry parts immediately with compressed air or a clean, lint-free towel. Heat-assisted drying racks work great for large batches.

Maintaining Your Media and Staying Safe

600 grit silicon carbide is an investment. Handle it right.

• Media Life: Store used media in a sealed, labeled container. It can be reused multiple times until cutting action slows. You can often refresh it by running a cycle with just compound to break up clumps.
• Dust Control: This is a fine powder. Always wear an NIOSH-approved N95 dust mask when handling the dry media. Add compound before running to suppress dust.
• Contrast with Alternatives: Unlike rounded ceramic media which peens, or soft plastic which polishes, silicon carbide cuts. It’s faster than ceramic at the same grit and provides a more uniform finish than plastic media on complex geometries.

What to Expect and Where to Get It

A properly executed cycle with 600 grit silicon carbide powder for tumbling and deburring yields a uniform, matte, satin finish. All parts in the batch will match. Sharp edges will be softly broken but the part geometry will remain intact. It’s the hallmark of a professional, controlled finishing process.

Source your media from reputable industrial abrasive suppliers or specialized finishing houses. Avoid generic “tumbling media” listings. You want fresh, consistently sized powder. Pricing is typically by the pound or kilogram, with bulk discounts. It’s more expensive per pound than ceramic, but its cutting speed and finish quality deliver a lower cost per finished part.

Stop Experimenting, Start Achieving Consistent Finishes

We’ve all wasted time and money on cycles that didn’t deliver. The logic is clear: for a final, uniform satin finish, the properties of 600 grit silicon carbide are unmatched. Its hardness and sharp fracture provide the control and consistency that softer, rounder media simply cannot.

Ready to see the difference? Stop compromising with media that’s “close enough.” For your next batch of precision aluminum, brass, or steel parts that need a flawless, non-reflective finish, make the switch to the right tool for the job.

Purchase a batch of high-quality 600 grit silicon carbide powder from a trusted supplier today. Set up your vibratory tumbler using the exact ratios and steps we outlined. Run a test batch. The results will speak for themselves-a perfect, repeatable finish, batch after batch.
