Zirconium Diboride powder ZrB2 cas 12045-64-6

(Zirconium Diboride powder ZrB2 cas 12045-64-6)

Specifications of Zirconium Diboride ZrB2 powder:

Product Name: Zirconium Diboride

CAS number: 12045-64-6

Features of Zirconium Diboride ZrB2 powder:

TiB2, ZrB2, HfB2, VB2, NbB, NbB2, TaB, TaB2, CrB2, Mo2B5, W2B5, Fe2B, FeB, CoB, Co2B, NiB, Ni2B, Ni2B, LaB6, UB4, UB2.

Zirconium diboride (ZrB2) is a highly covalent refractory ceramic material with a hexagonal crystal structure. ZrB2 is an ultra high temperature ceramic (UHTC) with a melting point of 3246 °C. This along with its relatively low density of ~6.09 g/cm3 (measured density may be higher due to hafnium impurities) and good high temperature strength makes it a candidate for high temperature aerospace applications such as hypersonic flight or rocket propulsion systems. It is an unusual ceramic, having relatively high thermal and electrical conductivities, properties it shares with isostructural titanium diboride and hafnium diboride.

Properties of Zirconium Diboride ZrB2 powder:

Molecular formula: ZrB2

Molar mass: 112.85 g/mol

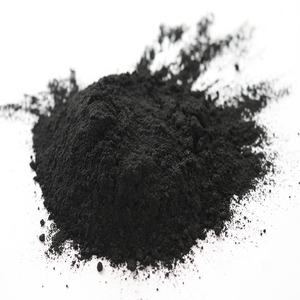

Appearance: grey-black powder

Density: 6.085 g/cm3

Melting point: 3246 °C

Solubility in water: Insoluble

Crystal structure: Hexagonal, hP3

Space group: P6/mmm, No. 191

ZrB2

Zr

B

N

Si

Fe

Ni

80.03%

18.97%

＜0.08%

＜0.1%

＜0.07%

＜0.05%
